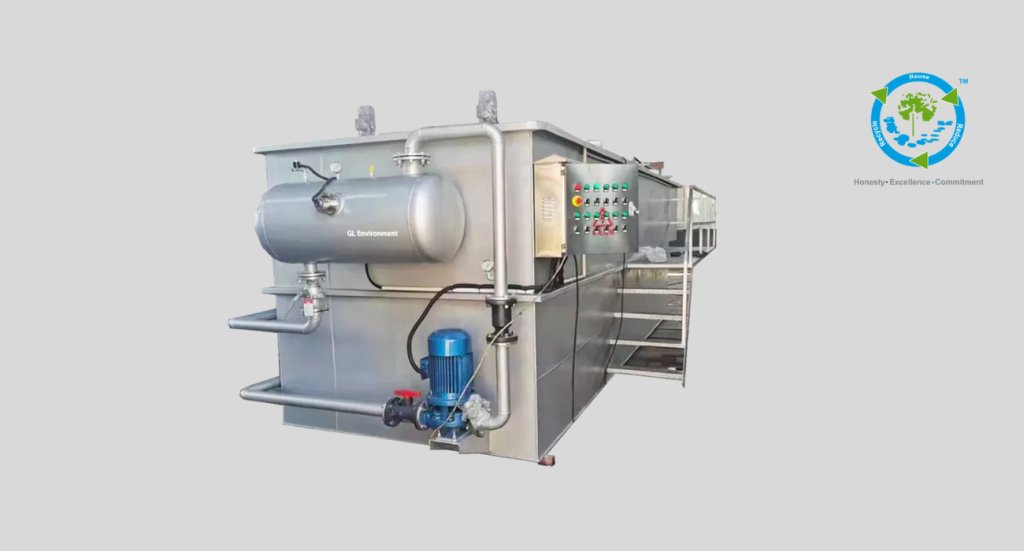

DAF System
- DISSOLVED AIR FLOTATION (DAF) SYSTEM
A Dissolved Air Flotation (DAF) System is one of the most effective water and wastewater treatment technologies for removing oil, grease, suspended solids, and other insoluble impurities. It is widely used in industries where conventional sedimentation is not sufficient. DAF enhances separation by using micro-bubbles that attach to solid particles and float them to the surface for easy removal.
- How It Works
- Wastewater is dosed with coagulants/flocculants (if required) to enhance particle binding.
- Air is dissolved in water under pressure and then released at atmospheric pressure.
- Tiny air bubbles attach to oil droplets and suspended solids.
- These particles rise to the surface and form a sludge layer.
- A skimmer mechanism removes the sludge, while clarified water is discharged.
- Salila Envirotech DAF Solutions
- Compact and efficient design
- High solids and oil removal efficiency
- Easy operation and low maintenance
- Compliance with discharge and reuse standards
- Applications :
- Food & beverage industries (dairy, meat, poultry, fish processing)
- Oil refineries & petrochemicals
- Pharmaceutical & chemical industries
- Pulp & paper mills
- Textile & dyeing units
- Common effluent treatment plants (CETPs)
- Pre-treatment for RO and tertiary systems
- Advantages of DAF Systems
- Removes oils, fats, grease, suspended solids, and algae efficiently
- Produces clearer effluent compared to sedimentation
- Compact footprint, suitable for space-limited sites
- Easy integration with ETPs and STPs
- High sludge thickening efficiency, reducing sludge handling costs
- Flexible design to handle varying flows and loads
- Design & Specifications
- Material of Construction: Mild Steel (epoxy coated), Stainless Steel (SS 304/316), or FRP-lined
- Capacity: Ranging from 5 m³/hr to over 500 m³/hr (custom-built)
- Pressurization System: Saturation vessel with recirculation pumps
- Skimming Mechanism: Adjustable scrapers, belts, or collection paddles
- Control Systems: MCC/PLC-based automated operation
- Integration: Can be combined with coagulation, flocculation, and tertiary treatment
- Service & Support
- End-to-end design, supply, and installation of DAF units
- Integration with chemical dosing systems (coagulants, flocculants, pH correction)
- Operation & Maintenance (O&M) support contracts
- After-sales service and availability of spares
