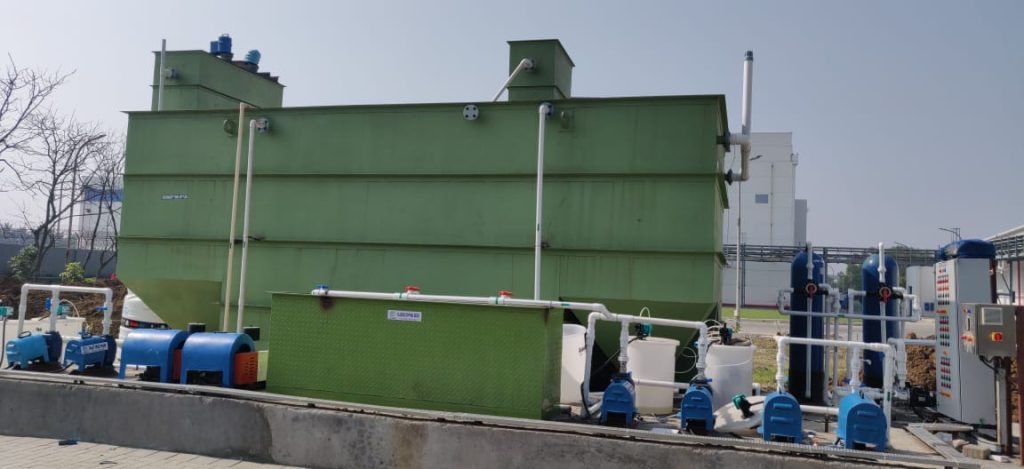

Effluent Treatment Plant
- CUSTOMIZED ETP SOLUTIONS
Industrial wastewater is mixture of various impurities hence require specialized treatment process. The complexity and combination of various different sources generated at industries differentiate each type of effluent unlike domestic wastewater sources.
Salila Envirotech offers customized solutions for industrial effluent treatment understanding type of effluents. We offer an exhaustive range of effluent treatment plants that efficiently purify the effluent using following processes:
- Aerobic Biological Process
- Anaerobic Biological Process
- Chemical-physical process
Treated product water quality can be optimized to highest degree as per reuse application and meeting as per local government norms. The system is fully capable of removing organic & inorganic substance, colloidal particles, suspended solids, pathogens etc.
We offer ETP solutions to any capacities and with multiple options for treatment tanks, process and combinations of unit operations. Our solutions are designed with motto to provide benefits to customers in terms of minimum space requirement, minimum expenditure, optimum degree of product water and mitigating local and social norms for purification process.
- Specifications :
- Customized solutions
- Pilot treatability arrangements
- Use of proven technical methods
- Combination of treatment unit operations
- Use of reputed components and equipment’s
- Applications :
- Hotels & resorts, community kitchens, canteen waste
- Hospitals, Pharmaceutical units
- Textile, engineering, manufacturing, laundry units
- Dairy, food products, confectionary, food processing. Meat processing units
- Chemicals, fertilizers, dyes and other industries
- Specifications:
- A. Material Of Construction:
- Effluent Treatment unit with available options for material of constructions as follows:
- Mild steel with epoxy painting (MSEP)
- Mild steel with FRP lining
- CS (carbon steel) with epoxy painting
- FRP (Fiberglass reinforced plastic)
- PP FRP
- Civil tanks
- B. Capacity:
- Customized design , can be offered as per requirement.
- C.Treatment Technology
- Primary Treatment
- Treatment Technology - Primary Treatment
- Neutralization, equalization, Oil removal, screening etc
- Control Unit & Instruments
- MCC / PLC panel (Optional), Standard panel
- Level controllers for pump dry run protection
- Pressure gauge, Rotameters, Flow meters as per requirement
- 440 V, 50 HZ, 3 pH power connection
- Tertiary treatment Options
- Filtration with sand/ activated carbon
- Bag filtration/ disc filtration
- Disinfection with Sodium hypo Chlorite, Chlorine dioxide
- Disinfection with Ozone
- Disinfection with UV, H2O2
- Advance filtration using Ultrafiltration
- Biological Treatment Options
- Extended aeration.
- MBBR (Moving Bed Biofilm Reactor)
- SBR (Sequential Batch Reactor)
- MBR (Membrane Bio Reactor)
- Integration of treatment units for industrial effluent treatment
- Service / Sales support
- Dedicated service and after sales support team
- Operation & maintenance manual
- Installation and commissioning service.
- Fabrication Features
- Fabrication with good engineering practice
- Skid mounted unit
- Enclosed units and equipment’s in containerized systems
- MILD steel/Carbon Steel tanks with red oxide primer and anticorrosive paint.
- High grade FRP lining.
- Branded components/ Equipment’s/ Pipes/ Electrical fixtures
- Comparison Of Packaged STP Vs. Conventional Sewage Treatment Plant
| Parameter | Packaged STP | Conventional STP |
|---|---|---|
| Space requirement | Reduced due to less thickness of partition walls | Large area required due to civil construction walls. |
| Process Tanks | Process Tanks Pre-Fabricated tanks. | Civil tank (to be built by client) |
| Portability | Easy for relocating to other places. | Fixed construction in civil cannot be moved. |
| Treated Water Quality | Treated Water Quality High Quality, can be used directly for Gardening, Cleaning, process. | May require further treatment. |
| Operation & Maintenance | Easy for operation and maintenance. Virtually no manpower required. | Tedious for maintenance of MLSS and achieving the end quality |
